NAVITEL R9

Your reliable assistant

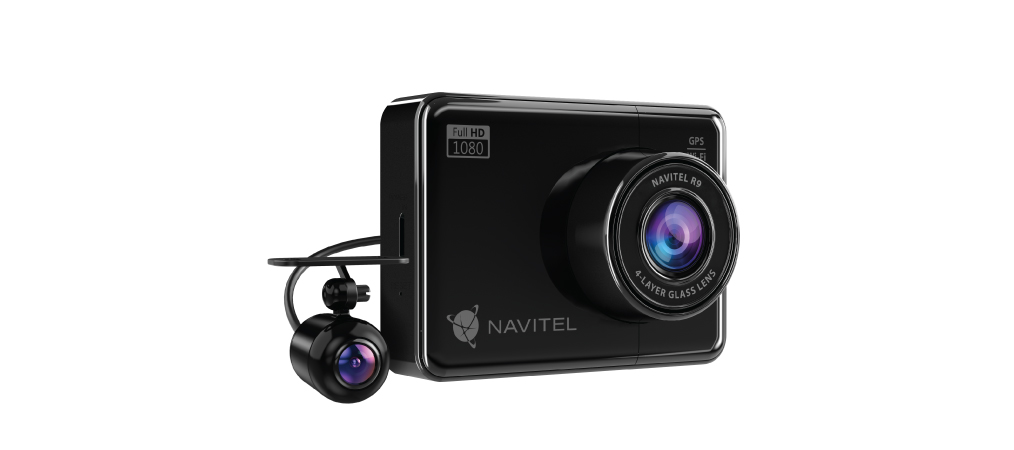

NAVITEL R9 is a universal dashcam with 1080p Full HD recording, additional rear camera and built in GPS.

Recording Quality

On NAVITEL R9 there is a SONY IMX307 (night vision) matrix and lens with 4 glass lenses and a wide viewing angle of 170°, which provides high quality recording of everything that happens on the road.

Two cameras

The kit also includes an additional 720p rear-view camera to capture footage behind your vehicle as you drive.

Enhanced functionality

The NAVITEL R9 Dash Cam offers you a new level of comfort and safety. With the device, you will be able to capture video in 1080p Full HD and with the built in GPS capture your location and view your speed.

Protected Records

The NAVITEL R9 Dash Cam has a built-in impact sensor (G-sensor) that protects video from rewriting that is made during a collision or sharp manoeuvre.

Mobile App

With Navitel DVR Center, you can view real-time video from your recorder, change your device settings, and save files to your smartphone or tablet, share them on social media, or mail them.

Contents

NAVITEL R9 Dash Cam
Windscreen holder
Car charger 12/24 V
Mini-USB – USB cable
Rear camera
Video cable for the rear camera
Microfiber cloth
User manual
Warranty card

NAVITEL R9:

Camera
Camera sensor
SONY IMX307 (night vision)
Video resolution
Full HD 1920х1080
Viewing angle
170°
Lens material
4-layer glass
Video format
MOV
Image format
JPG
Video fragments length
1/3/5 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera
included in the package
Video resolution
HD 1280x720
Viewing angle
90°
Mount
car rear window / license plate frame
IP protection
IP 65
Camera rotation
130°
Dimensions
50х40х50 mm
Parking lines
yes
Black wire length
580 cm
Red wire length
90 cm
Display
Screen size
2.7"
Screen type
TN
Screen resolution
320х240
Touch screen
no
Features
Auto-Start
yes
Digital speedometer
yes
G-sensor
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
GPS antenna
yes
Mass Storage
yes
Manage via Navitel DVR Center
yes
Wi-Fi
Wi-Fi Operating frequency
2400~2500MHz for IEEE 802.11b/g/n
Wi-Fi Output Power 802.11b /11Mbps
15db
Wi-Fi Output Power 802.11g /54Mbps
27db
Wi-Fi Output Power 802.11n /MCS7
30db
Wi-Fi Output Power 802.11n HT20
30db
Power
Power supply (12-24V 1.5A)
5V 1.5A
Battery
Li-Pol
Battery capacity
300 mAh
General
CPU
MSTAR AIT8339
Interfaces
mini-USB/micro-USB
microSD slot
up to 64 GB
Number of cameras
2
Mount
suction cup
Speaker
yes
Microphone
yes
Color
black
Dimensions
74х53х33 мм mm
Weight
85 g
EAN
8594181742504
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
