NAVITEL R1000

NAVITEL R1000 - 01
NAVITEL R1000 - 02
Unique design

One look at it and you know - this tiny and powerful DVR is like no other. Chances are NAVITEL R1000 will mesmerize you with its futuristic design so let's just dive into the discussion of its secret talents.

NAVITEL R1000 - 03
NAVITEL R1000 - 04

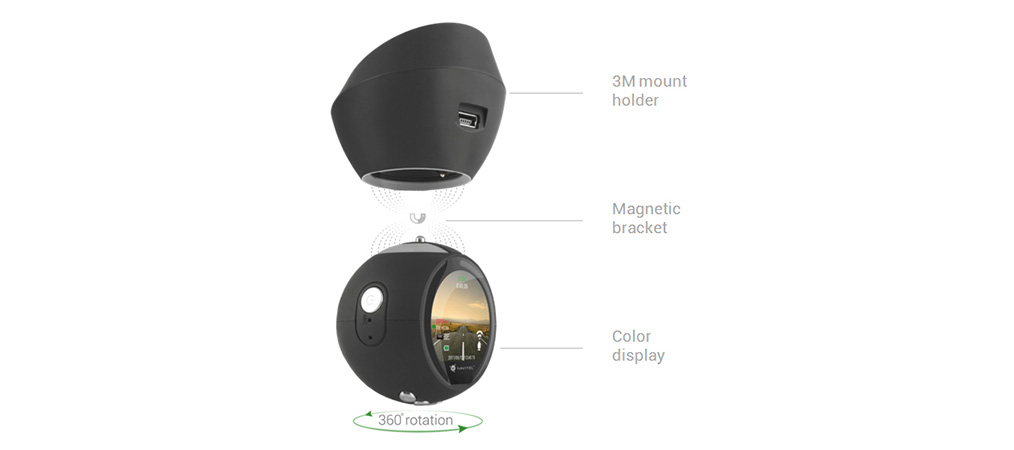

Magnetic mount

NAVITEL R1000 consists of a 3M adhesive mount that attaches firmly to the windscreen of your car and a camera connected to the mount with a magnetic bracket. This allows for easy 360° rotation of the camera. With NAVITEL R1000, you can record critical footage of events happening in front of you or inside of your car, capture passenger's seat as well as driver's side door.

NAVITEL R1000 - 05
Mobile app

Navitel DVR Center allows to connect the dash cam to your smartphone, instantly share videos taken by NAVITEL R1000 and watch them on the screen of your mobile device in real-time. DVR settings can be easily adjusted directly from your mobile phone through the app interface.

NAVITEL R1000 - 06
NAVITEL R1000 - 07
NAVITEL R1000 - 08
High quality optics

NAVITEL R1000 has glass optics. The DVR records Full HD footage with enhanced clarity at 30 fps frame rate. With a wide viewing angle of 165 °, impressive in such a compact device, NAVITEL R1000 provides an optimal view and allows to take in a more detailed picture.

NAVITEL R1000 - 09
Safe file storage

The built-in G-sensor is activated in case of collision or an abrupt maneuver. The camera then saves the footage recorded during the accident and protects it for future reference making sure it is not written over.

NAVITEL R1000 - 10
Bonus - Navitel Navigator license

All users receive a gift voucher with a 12-month license key that allows to install Navitel Navigator application with maps of 43 European countries, Russia, Belarus, Kazakhstan and Ukraine.

Contents

DVR
Windscreen holder
Car charger
miniUSB cable
Microfiber cloth
User manual
Warranty card
Gift voucher


All users receive a gift voucher with a 12-month licence key that allows to install Navitel Navigator application with maps of 43 European countries, Russia, Belarus, Kazakhstan and Ukraine. The license key can be activated on one smartphone or tablet running Android OS.

NAVITEL R1000:

Camera
Camera sensor
GC2023
Video resolution
Full HD 1920х1080
Viewing angle
165°
Lens material
6-layer glass
Video format
MOV (H.264)
Image format
JPG
Video fragments length
1/3/5 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera connectivity
no
Display
Screen size
1.22"
Screen type
TN
Screen resolution
240x204
Touch screen
no
Features
Auto-Start
yes
GPS-alerts
yes
Digital speedometer
yes
G-sensor
yes
Motion detection
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
GPS antenna
yes
Manage via Navitel DVR Center
yes
Wi-Fi
Wi-Fi Operating frequency
2.4GHz band
Wi-Fi Output Power 802.11b /11Mbps
10db
Wi-Fi Output Power 802.11g /54Mbps
27db
Wi-Fi Output Power 802.11n /MCS7
30db
Wi-Fi Output Power 802.11n HT40
30db
Power
Power supply (12-24V 1.5A)
5V 1-1.5A
Battery
Li-Pol
Battery capacity
180 mAh 3.7 V
General
CPU
MStar MSC8328
Interfaces
mini USB
microSD slot
up to 64 GB
Number of cameras
1
Mount
3M adhesive, magnet, power supplied directly to holder
Speaker
yes
Microphone
yes
Color
black
Dimensions
48х48х87 mm
Weight
98 g
Gift voucher
maps of 45+ countries (12 month license)
EAN
8594181742320
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
